Variable Valve Timing (VVT) solenoids play a crucial role in modern automotive engines, optimizing performance, fuel efficiency, and emissions. These solenoids control the timing of the opening and closing of the engine's valves, ensuring optimal combustion and power delivery.
However, like any mechanical component, VVT solenoids can experience wear and tear over time, leading to performance issues or even engine failure. Therefore, knowing how to test these solenoids is essential for diagnosing and addressing potential problems before they escalate.
In this guide, we'll delve into the intricacies of testing variable valve timing solenoids, equipping you with the knowledge needed to keep your engine running smoothly.
1. Understanding Variable Valve Timing Solenoids
Before diving into testing procedures, it's essential to grasp the function and structure of variable valve timing solenoids.

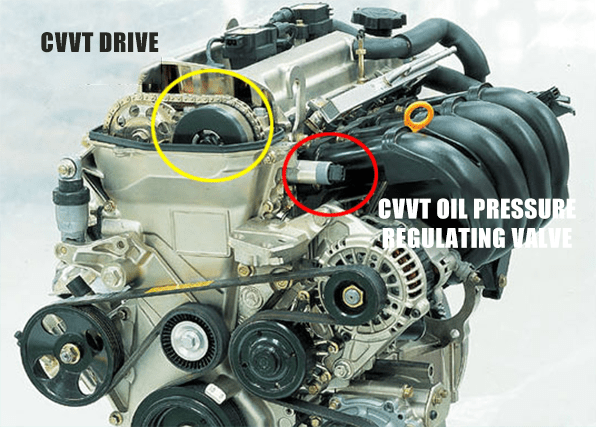

These solenoids are electromechanical devices responsible for controlling the flow of oil to the VVT system. By regulating oil pressure, they adjust the position of camshaft phasers or actuators, altering the timing of the intake and exhaust valves.

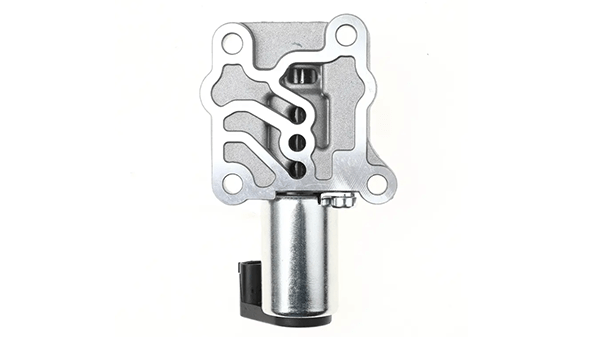

VVT solenoids typically consist of a coil, plunger, and valve. When energized, the coil generates a magnetic field that moves the plunger, allowing oil to flow through the solenoid. This, in turn, adjusts the timing of the camshaft, optimizing engine performance based on factors such as engine speed, load, and temperature.
2. Common Symptoms of VVT Solenoid Issues
Before testing a VVT solenoid, it's crucial to recognize the signs of potential problems. Common symptoms of faulty VVT solenoids include:
1. Rough idling: Irregular engine idling can indicate issues with valve timing, often caused by a malfunctioning VVT solenoid.
2. Decreased fuel efficiency: A poorly functioning VVT solenoid may lead to suboptimal combustion, resulting in decreased fuel economy.
3. Engine misfires: Timing discrepancies caused by faulty VVT solenoids can lead to engine misfires, impacting performance and drivability.
4. Check Engine Light (CEL): A malfunctioning VVT solenoid often triggers the Check Engine Light on the dashboard, indicating the need for diagnostics and repairs.
3. Testing Variable Valve Timing Solenoids
Now that we've established the importance of VVT solenoids and identified potential issues, let's explore the steps involved in testing these critical components.
1. Diagnostic Trouble Code (DTC) Scan
●Begin by scanning the vehicle's onboard computer for diagnostic trouble codes (DTCs) related to the variable valve timing system. Common codes include P0010 (Intake Camshaft Position Actuator Circuit), P0011 (A Camshaft Position - Timing Over-Advanced or System Performance), and P0013 (B Camshaft Position - Actuator Circuit/Open).
●Note any stored codes and use them as a reference point for further diagnostics.
2. Visual Inspection
●Inspect the VVT solenoid and its surrounding components for signs of damage, leaks, or corrosion. Ensure that electrical connectors are securely attached and free from debris or corrosion.
●Check for any loose or damaged wiring that may affect the solenoid's operation.
3. Electrical Testing
●Use a digital multimeter (DMM) to test the resistance of the VVT solenoid's coil. Disconnect the electrical connector from the solenoid and set the multimeter to the ohms (Ω) setting.
●Measure the resistance across the terminals of the solenoid coil. Refer to the vehicle's service manual for the specified resistance range. A reading outside this range indicates a faulty solenoid that requires replacement.
4. Functional Testing
●With the VVT solenoid removed from the engine, apply battery voltage and ground to the solenoid terminals using jumper wires.
●Listen for audible clicks or feel for vibrations, indicating that the solenoid is functioning correctly. If there is no response, the solenoid may be faulty and should be replaced.
●Alternatively, connect the solenoid to a scan tool capable of actuating VVT components. Use the scan tool to command the solenoid to various positions and monitor its response.
5. Oil Flow Testing
●Perform an oil flow test to ensure that the VVT solenoid is receiving adequate oil pressure from the engine's lubrication system. Consult the vehicle's service manual for specific procedures and pressure specifications.
●Use a pressure gauge to measure oil pressure at the solenoid's inlet and outlet ports while the engine is running. Compare the measured pressure to the manufacturer's specifications to verify proper operation.
4. FAQs about VVT Solenoids
4.1 What Happens When a Variable Timing Solenoid Goes Bad?
When a variable timing solenoid malfunctions, it can lead to various issues in the engine's performance. Symptoms may include rough idling, stalling, poor acceleration, decreased fuel efficiency, and even engine misfires. This component is crucial for controlling the timing of the engine's valves, affecting combustion efficiency and overall power delivery.
A faulty solenoid can cause timing discrepancies, leading to improper fuel-air mixture, inefficient combustion, and ultimately, reduced engine performance. It's advisable to address solenoid issues promptly to prevent further damage to the engine.
4.2 What Does the Variable Valve Timing Solenoid Do?
The variable valve timing (VVT) solenoid regulates the timing of the engine's valves, optimizing performance across different driving conditions. By adjusting the timing of the intake and exhaust valves, it enhances fuel efficiency, increases power output, and improves engine response. This component works in tandem with the engine control unit (ECU) to ensure precise valve timing, maximizing engine efficiency and reducing emissions.
4.3 Is It OK to Drive with a Bad VVT Solenoid?
Continuing to drive with a faulty Variable Valve Timing (VVT) solenoid is not recommended. A malfunctioning VVT solenoid can lead to poor engine performance, reduced fuel efficiency, and potential damage to other engine components. Ignoring the issue may result in more extensive and costly repairs over time. It's advisable to address VVT solenoid problems promptly to maintain optimal engine function and prevent further damage.
4.4 How Much Does It Cost to Replace a Variable Timing Solenoid?
The cost to replace a variable timing solenoid varies depending on several factors such as the make and model of the vehicle, labor costs in your region, and whether you're using genuine OEM parts or aftermarket alternatives.
On average, the replacement cost for a variable timing solenoid ranges from $100 to $300 for the part alone. Labor costs can add several hundred dollars more. However, prices can significantly vary, so it's advisable to consult with a trusted mechanic or automotive service center for an accurate estimate tailored to your specific vehicle and location.
5. Conclusion
Testing variable valve timing solenoids is a crucial aspect of automotive diagnostics, allowing technicians to identify and address potential issues before they escalate. By understanding the function of VVT solenoids, recognizing common symptoms of malfunction, and following systematic testing procedures, you can effectively diagnose and resolve problems related to variable valve timing systems.
Remember to consult the vehicle's service manual and use appropriate diagnostic tools to ensure accurate testing and reliable results. With the knowledge gained from this guide, you'll be better equipped to maintain optimal engine performance and prolong the lifespan of your vehicle.
