Video: Exploring Tunnel Ovens: Structure, Working Principle, Features, and Applications

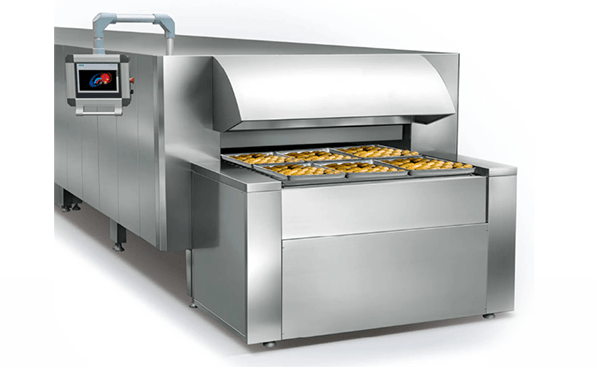

Figure 1: Tunnel oven.
Tunnel ovens play a pivotal role in industrial baking and various other applications, providing a seamless and efficient means of mass production. In this comprehensive exploration, we delve into the intricate details of tunnel ovens, unraveling their structure, working principles, notable features, and diverse applications across industries.
1. Structure and Components of Tunnel Oven
The structure of a tunnel oven is designed for efficient and continuous baking processes, commonly used in
industrial settings. The key components and their functions are integral to the oven's overall performance. Let's
explore the typical components and structure of a tunnel oven.
1. Conveyor System
At the heart of a tunnel oven is the conveyor system. It consists of a continuous belt that moves products through
the various stages of the baking process. The conveyor speed is adjustable, allowing for control over the residence
time of products in different zones.
2. Insulated Casing
The entire oven is enclosed in an insulated casing. This serves multiple purposes, including:
①Heat Retention: The insulation helps in retaining heat within the oven, improving energy efficiency.
②Temperature Control: It contributes to maintaining a consistent and controlled internal temperature throughout the
baking process.
③Safety: The insulation prevents the outer surface from becoming too hot, ensuring a safe working environment.
3. Heating Zones
Tunnel ovens are divided into multiple heating zones, each equipped with its heating elements and controls. The
number of zones can vary based on the specific design and intended application of the oven. Each zone contributes to
the gradual heating or baking of products as they move through the oven.
Figure 2: Tunnel oven.
2. How Does a Fan Oven Work?
4. Heating Elements
These are the components responsible for generating the heat required for baking. Common types of heating elements
include electric heating elements or gas burners, depending on the energy source chosen for the oven.
5. Temperature Control System
A precise temperature control system is essential for achieving the desired baking results. Each heating zone is
equipped with sensors and controls that regulate the
temperature within a specific range.
6. Exhaust System
The exhaust system is designed to control air circulation and remove by-products such as excess humidity and fumes
generated during the baking process. This ensures a clean and controlled baking environment.
7. Cooling Zone
Towards the end of the oven, a cooling zone is incorporated to gradually reduce the temperature of the baked
products. This step is crucial for setting the final structure of the goods and preparing them for further
processing or packaging.
8. Conveyor Speed Control
The conveyor speed can be adjusted based on the type of product being baked and the desired characteristics of the
final product. This feature allows for flexibility in the baking process.
Figure 3: Speed reducer.
9. Control Panel and Automation
Tunnel ovens are equipped with a control panel that allows operators to monitor and adjust various parameters.
Advanced automation systems enable precise control over temperature, conveyor speed, and other relevant settings,
contributing to efficiency and consistency in production.
10. Hygienic Design
The structure of tunnel ovens often incorporates a hygienic design with easy-to-clean surfaces and materials. This
is particularly important in food production to meet strict hygiene standards and minimize the risk of
contamination.
11. Access Doors
Access doors are strategically placed along the oven for maintenance purposes. These doors allow technicians or
operators to access the interior for cleaning, inspection, and repairs.
12. Exhaust Hood
The exhaust hood is positioned at the end of the oven to capture and expel any remaining fumes or heat. It is part
of the overall exhaust system and contributes to maintaining a comfortable working environment.
Understanding the components and structure of a tunnel oven provides insights into its functionality and highlights
the features that make it a versatile and efficient tool in various industrial processes, especially in large-scale
baking operations.
2. Working Principle of Tunnel Ovens
Figure 4: Tunnel oven working principle diagram.
2.1 Preheating Zone
The journey through a tunnel oven begins with a preheating zone where the products are introduced to an initial heat source. This gradually raises the temperature, preparing the items for the main baking process.
2.2 Baking Zone
As products move into the central baking zone, they are exposed to the primary heat source. This is where the transformation occurs, and the raw materials are converted into the final baked goods. Precise temperature control in this zone is critical for achieving the desired texture and flavor. issue.
2.3 Cooling Zone
Subsequent to baking, products enter a cooling zone where they undergo a gradual temperature reduction. This phase is essential to set the final structure of the baked items and ensure they are ready for packaging or further processing.
2.4 Conveyor Speed Control
The speed of the conveyor belt is a key factor in the working principle. It can be adjusted to control the residence time of products in each zone, allowing for customization based on the specific requirements of different recipes.
Figure 5: Tunnel oven motor and fan.
3. Features of Tunnel Ovens
1.Automation and Control Systems
Tunnel ovens are equipped with advanced automation and control systems, allowing operators to monitor and adjust
parameters such as temperature, conveyor speed, and humidity. This automation enhances efficiency, reduces the
margin of error, and ensures consistent product quality.
2.Versatility in Heat Sources
These ovens are adaptable to various heat sources, including electric, gas, or hybrid systems. This versatility
provides flexibility for manufacturers to choose the most cost-effective and energy-efficient option based on their
operational requirements.
3.Modular Design
The modular design of tunnel ovens enables easy customization and expansion. Manufacturers can scale their
production capacity by adding or modifying heating zones, making it a practical solution for growing businesses.
4.Hygienic Design
Tunnel ovens are constructed with hygiene in mind. Easy-to-clean materials and seamless surfaces minimize the risk
of contamination, ensuring compliance with strict industry standards.
Figure 6:Bread production line.
4. Applications of Tunnel Ovens
4.1 Bakery Industry
Tunnel ovens are widely employed in the bakery industry for the mass production of bread, cookies, pastries, and other baked goods. The continuous flow and precise temperature control contribute to consistent quality and output.
4.2 Food Processing
In the food processing sector, tunnel ovens are utilized for cooking and processing various food items, including meats, vegetables, and ready-to-eat meals. The controlled environment ensures thorough and uniform cooking.
4.3 Industrial Drying
Tunnel ovens find application in industrial drying processes, such as drying fruits, nuts, or grains. The controlled heat and airflow contribute to efficient and uniform drying, preserving the quality of the products.
5. Conclusion
In conclusion, tunnel ovens stand as a testament to the marriage of precision engineering and culinary artistry. Their versatile applications across industries, coupled with advanced features and a robust working principle, make them indispensable in modern manufacturing processes. As technology continues to evolve, tunnel ovens are likely to play an even more pivotal role in shaping the future of mass production across diverse sectors.
