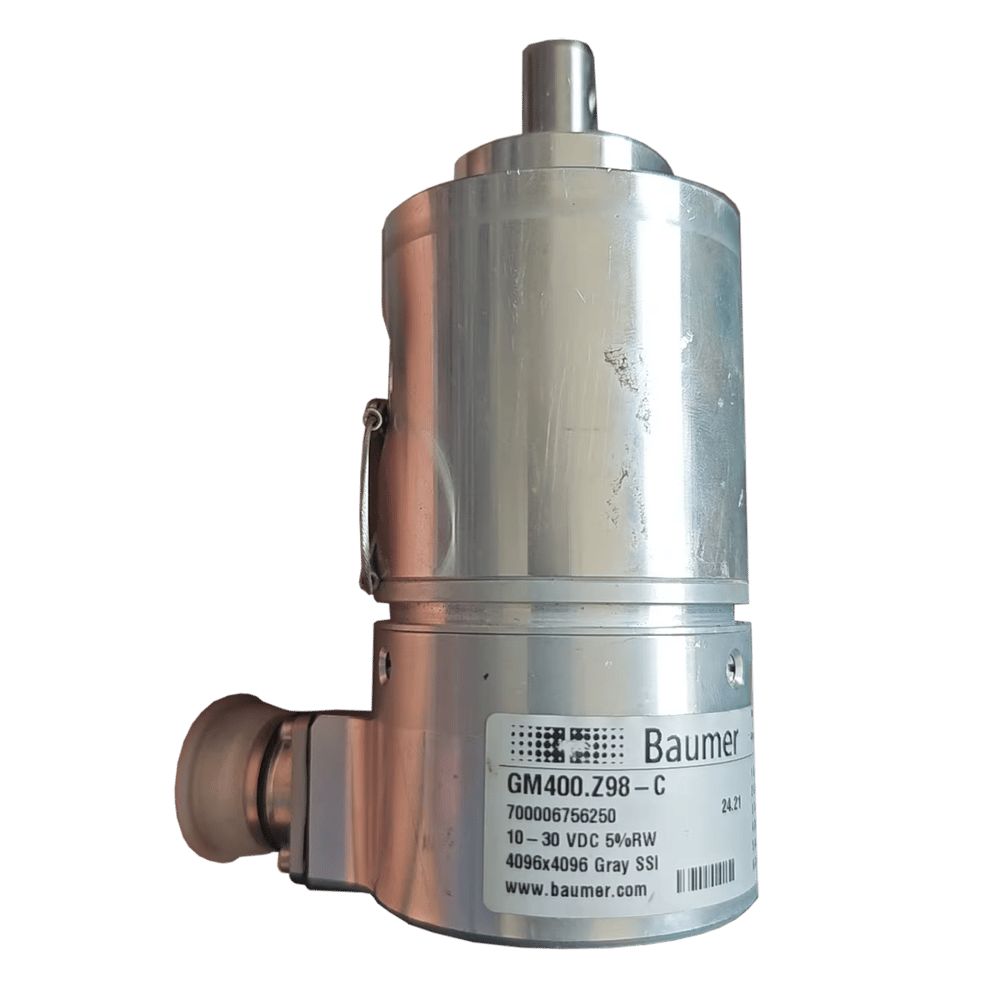

Baumer Encoder GM400.Z98-C
$ 1,071 .43
✔ In Stock (Can ship in 5-7 days)
Quantity
MOQ : 1
Payment Methods
Online Support 24/7
12 Months Warranty for New Products
30 Days Money Back Guarantee
Technical data - electrical ratings
Voltage supply
10...30 VDC
5 VDC ±10 %
Reverse polarity protection
Yes (10..30 VDC) / No (5 VDC)
Consumption w/o load
≤50 mA (24 VDC)
≤80 mA (5 VDC)
Initializing time typ.
20 ms after power on
Interface
SSI
Incremental A 90° B (optional)
Function
Multiturn
Steps per revolution
≤16384 / 14 bit
Number of revolutions
≤65536 / 16 bit
Absolute accuracy
±0.025 °
Sensing method
Optical
Code
Gray or binary
Code sequence
CW/CCW coded by connection
Inputs
SSI clock
Control signals UP/DOWN inv. and zero
Output stages
SSI data: Linedriver RS422
Diagnostic outputs push-pull
Incremental output
512, 1024, 2048 pulses + inverted
Interference immunity
EN 61000-6-2
Emitted interference
EN 61000-6-4
Diagnostic function
Self-diagnosis
Multiturn sensing
Approval
UL approval / E63076
Technical data - mechanical design
Size (flange)
ø58 mm
Shaft type
ø10 mm solid shaft
Flange
Clamping flange
Protection EN 60529
IP 54 (without shaft seal)
IP 65 (with shaft seal)
Operating speed
≤10000 rpm (mechanical)
≤6000 rpm (electric)
Starting acceleration
≤1000 U/s²
Starting torque
≤0.015 Nm (+25 °C, IP 54)
≤0.03 Nm (+25 °C, IP 65)
Rotor moment of inertia
20 gcm²
Admitted shaft load
≤20 N axial
≤40 N radial
Material
Housing: aluminium
Flange: aluminium
Operating temperature
-25...+85 °C
-40...+85 °C (optional)
Relative humidity
95 % non-condensing
Resistance
EN 60068-2-6
Vibration ±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz
EN 60068-2-27
Shock 200 g, 6 ms
Weight approx.
400 g
Connection
Connector M23, 12-pin
Connector M12, 8-pin
Cable 1 m
