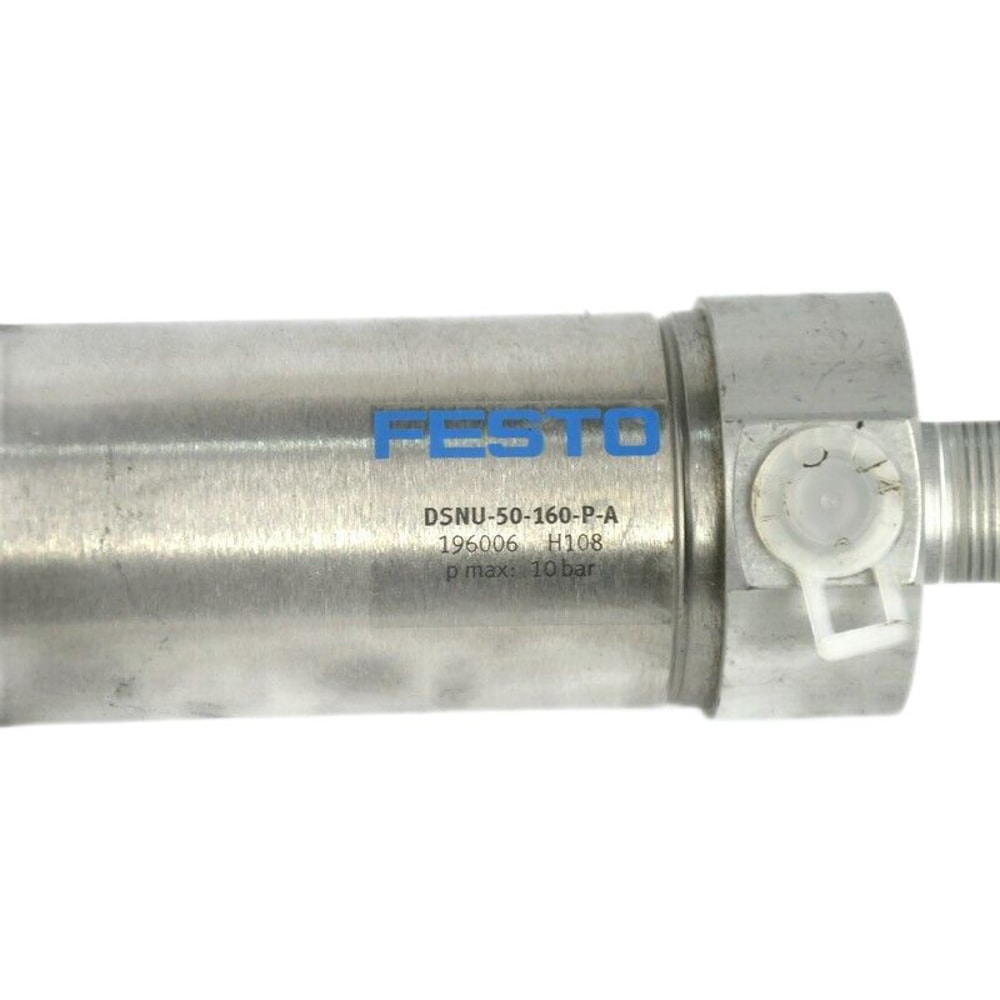

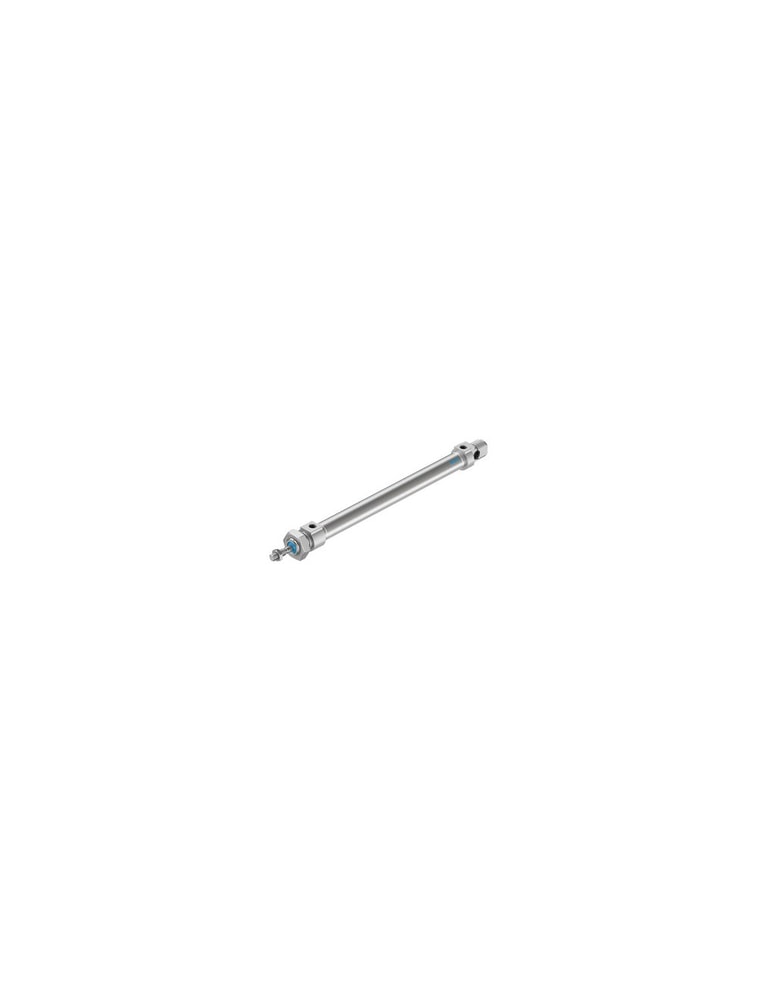

Festo Air Cylinder DSNU-50-160-P-A
$ 194 .75
✔ In Stock (Can ship in 5-7 days)
Quantity
MOQ : 2
Payment Methods
Online Support 24/7
12 Months Warranty for New Products
30 Days Money Back Guarantee
Stroke: 160 mm
Piston diameter: 50 mm
Piston rod thread: M16x1.5
Type code: DSNU
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Design: Piston: Piston rod: Cylinder barrel
Position sensing: For proximity sensor
Symbol: 00991217
Operating pressure: 1 bar - 10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Ambient temperature: -20 to 80 Celsius Degree
Theoretical force at 6 bar, retracting: 989.6 N
Theoretical force at 6 bar, advancing: 1178.1 N
Moving mass: 813 g
Product weight: 1727 g
Type of mounting: With accessories
Pneumatic connection: G1/4
Note on materials: RoHS-compliant
Cover material: Wrought aluminum alloy
Seals material: TPE-U(PU): NBR
Piston rod material: High-alloy steel
Material of cylinder barrel: High-alloy stainless steel
Piston diameter: 50 mm
Piston rod thread: M16x1.5
Type code: DSNU
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Design: Piston: Piston rod: Cylinder barrel
Position sensing: For proximity sensor
Symbol: 00991217
Operating pressure: 1 bar - 10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Ambient temperature: -20 to 80 Celsius Degree
Theoretical force at 6 bar, retracting: 989.6 N
Theoretical force at 6 bar, advancing: 1178.1 N
Moving mass: 813 g
Product weight: 1727 g
Type of mounting: With accessories
Pneumatic connection: G1/4
Note on materials: RoHS-compliant
Cover material: Wrought aluminum alloy
Seals material: TPE-U(PU): NBR
Piston rod material: High-alloy steel
Material of cylinder barrel: High-alloy stainless steel
