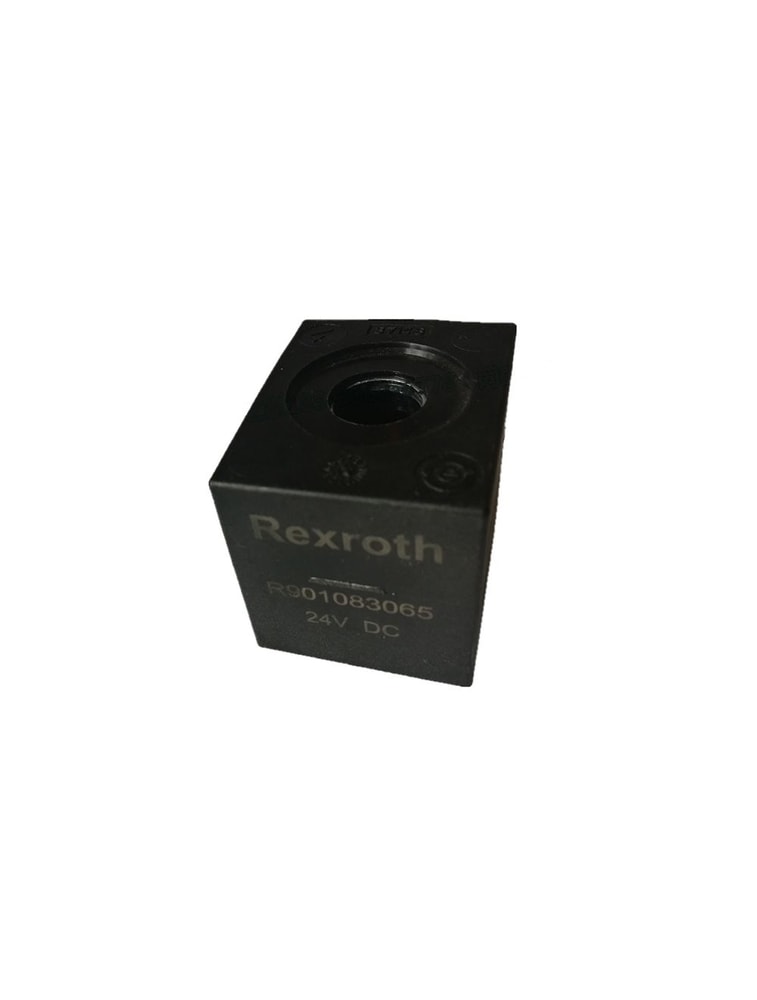

The Bosch Rexroth Coil is high quality!
R901083065
OD02170130OC00-S8.356HRL-24DC-20W-CL.H
Brand Rexroth/ Rexroth
Type R901083065
Material cast iron
Type (channel position) two general formula
Connection form thread
3C valve category industry
Applicable medium Various highly corrosive chemical media
The flow direction is unidirectional
Purpose voltage regulation
Nominal size 6mm
The working temperature is 60 degrees Celsius
Type OD02170130OC00
Material number R901083065
COIL S8-356 - CLASS H - 20 W
OD.02.17 - X - Y - Z
TECHNICAL DATA
Weight: 0.18 kg (0.40 lbs)
Heat insulation Class H: 180 degrees Celsius (356Fdegrees)
Ambient temperature range: -30/+60degrees Celsius (-22/+140F degrees)
Inlet voltage fluctuations must not exceed Plus or minus 10percent of nominal voltage
to obtain correct operation and long life coils.
X 01
Y 30
Connections DIN 43650 - ISO 4400
Circuit Standard
Voltage DC - RAC
Z OC
Voltage V Nominal 24 DC
Resistance Ohm (Plus or minus 7percent) Ta = 20-25 degrees Celsius (68-77 F degrees) 28.2
Power W Cold coil 20
Current A Cold coil 0.9 H o t coil 0.6
?T degrees Celsius (F degrees) 1 hour energized at Ta=20-25 degrees Celsius(68-77 F degrees ) Nominal voltage
105-110(221-230) These coils have passed the THERMAL SHOCK DUNK TEST
